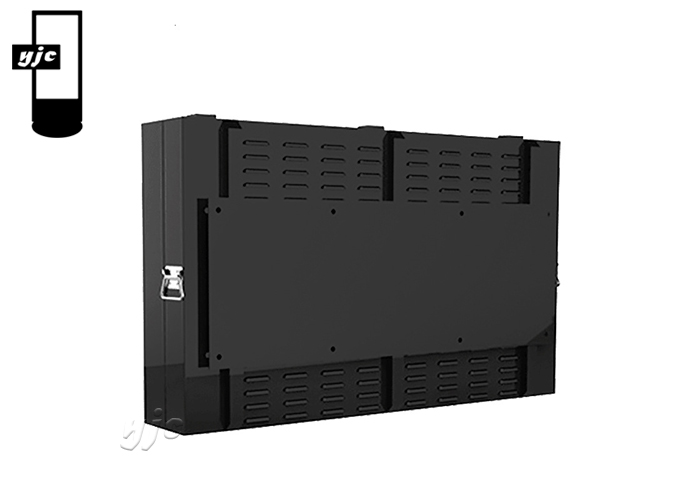

Lcd Panel 43 Inch TV Wall Mounted Display Outdoor Video Wall Screen
Digital Signage for Advertising Equipment
Description:
1. 43 inch high brightness screen, 1080P, visible in sunlight
2. Uniquely developed cooling system, working temperature: -20 ℃-55
℃
3. Automatic ambient light adjustment control (extended life and
energy efficiency)
4. IP65 waterproof and dustproof galvanized shell + 6mm AR
explosion proof tempered glass + air cooling / heating system
5. Can choose Android or Windows system, and has rich interfaces
and extended functions
6. AC 100 ~ 240V, can meet the working voltage of different
countries
7. Remotely control the device and check the working status of the
device in real time
8. 10-point G+G touch screen
9. Internet connection by WIFI, WLAN and 4G
10. Support OEM customization (LOGO, appearance, etc.)
| Model No. | YJC-430-233 |
| Panel size | 43″TFT-LED |
| Display area/mode | 941.184 × 529.416 mm (H×V) |
| Display Ratio | 16:9 |
| Maximum resolution | 1920*1080 |
| Display color | 1.073G(10bits/color) |
| Pixel Pitch | 0.21mm(H) x 0.63mm(V) |
| Brightness | 3000 nits |
| Contrast | 4000:1 |
| Visual angle | 178°/178° |
| Response time | 4ms |
| Life | ＞60000h |
| Speaker | 2*10W(8Ω) |
| Power supply | 100V~240V, 50HZ/60HZ |
Maximum power
consumption | ≤ 450W |
Standby power
consumption | <5W |
| Working temperature | 0℃~50℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 85% |
| Storage humidity | 85% |
| Panel color/appearance | Customized |
| Panel material | Cold rolled sheet metal shell |
| Installation | Wall mounted |
| System | Android |
| CPU | RK3399 |
| RAM | DDR3 4G |
| Memory | 32G |
| Internet connetcion | Wifi, RJ45 |
| System | Android 7.1 |
| USB port | OTG*2, USB HOST*2 |
| Upgrade | Support Uboot upgrade |
| Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,MOV,WMV,RM,
RMVB,etc. |
The outdoor digital signages are outdoor LCD ad player products
designed for outdoor environment such as parks, squares and leisure
area, usually with touch screen wich can add interaction between the machine and user,
it's a good smart touch screen lcd kiosk for information checking
terminal or wayfinding tool outside. The waterproof grade reaches IP65, which can be used normally in
rainy day. Brightness of 3000cd/M² can clearly display the image and can be
seen clearly in the sun, brightness sensor will adjust brightness
automatically as per environment daylight to protect user's eyes.
Inside system can be Android or Windows, Android support Google
Play, hundreds APK can be installed as per request, interactive
software can be installed remotely via internet, we have software
on your choice and buyer also can use their own remote control
sofware. Color, shape and logo can be customized.
This outdoor digital signage kiosk is IP65 waterproof, touch screen
can be used in rainy days, we usually attach a piece of nano touch
foil on tempered glass to make it interactive.
1, The split screen: most screen can be divided into eight play
area with three subtitles area;
2, Set the broadcast content: for all the playing area selected
content (pictures, video, slide, subtitles);
3, Rolling subtitles: supports subtitles water function, support
function of instant messaging, support scrolling text
4, Software upgrades, support online upgrade terminal software,
also can be directly installed in terminal software upgrade;
5, Program updates: support network update, via the Internet
download files, delete files, modify the file name, file copy,
change the playlist, etc.;Play files stored locally, not due to
network failure downtime
Play effect:
1, Support video, pictures, text mixed play;
2, To realize the seamless switching video really play;
3, Support the full format high-definition video decoding and 1080
p high-definition real;
(Support adding your LOGO)
Packing and Shipping :
Firstly, the advertisement player will be packed with plastic wrap.
Secondly, the lcd screen advertisement player will be packed in
carton.
Finally, the lcd screen is reinforced with wooden case for outer
packing.
